Quad band GPS Tracker GT02 GF07 Car Anti-Theft system Vehicle GSM GPRS Tracking Mini gps tracker Car tracker

1799

Description

Auction Title will be here!

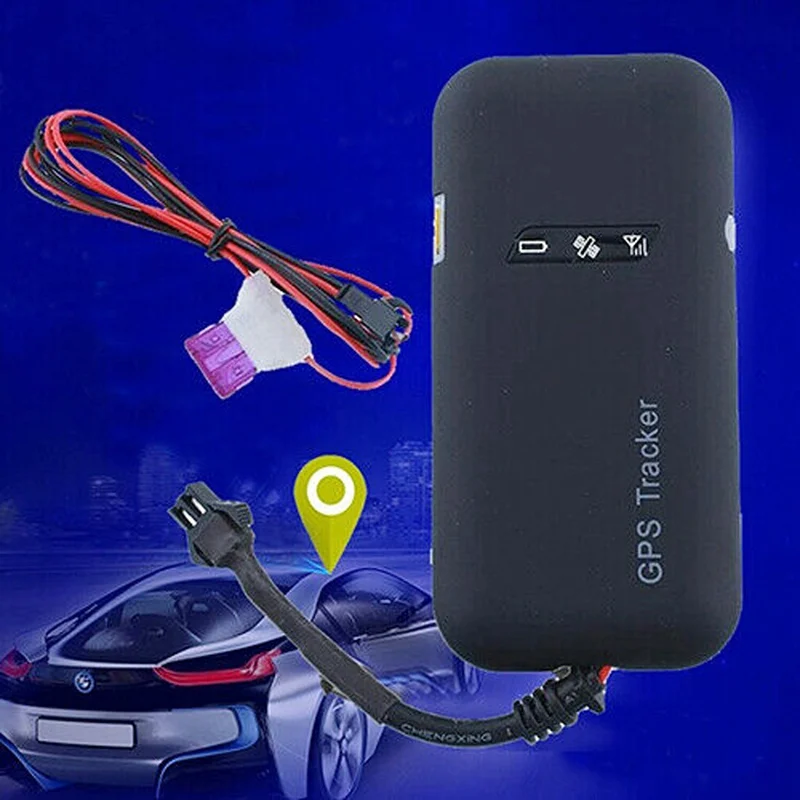

GT02
“Specification:
Dimension:about 90(L) x 45(W) x 13.5(H) mm
Operation Temperature:-20℃ ~ +70℃
Operation Voltage:9-36V DC
Humidity:20% – 80%
GSM Frequencies:850/900/1800/1900 MHz
GPRS:Class 12,TCP/IP
GPS Sensitivity:-159dBm
Acquisition Sensitivity:-144dBm
Position Accuracy:10m(2D RM)
Waterproof function: surface waterproof
Antenna type: Built-in GPS/GSM
TTFF (Open Sky)
Cold Start: <38s
Warm Start: <32s
Hot Start: <2s
GSM/GPS Antenna
Built-in design
LED Indicator
GSM-green, GPS-blue, Power-red
Data Transmit
TCP, SMS
Non-movement Detection
Movement alarm based on built-in 3D motion sensor
Mileage Report
Track by time/distance interval

Attention:
1. This item not included Sim card !
2. Terminal SIM card needs to open GPRS function
3. Please make sure that terminal SIM card has charge
4. Suggest using special GPS equipment flow card (only support GSM network)
5. DO NOT support 3G SIM Card, 2G ONLY

Installation Method:
1. Check the product, open the package and check product model and accessories
2. SIM card choice, terminal needs to insert a GSM SIM card
3. SIM card installation, use your hand to uncover the terminal cover, uncover SIM card slot cover, the SIM card metal side down into the SIM card slot, then fasten card slot cover, and finally put on the back shell
Terminal Installation:

This device is high technical GPS product, please follow the following order to do terminal installation, don’t inverse. In the installation process, please don’t give terminal power supply. The terminal’s installation suggests to be a concealed installation.
Please pay attention to the following items:
1. To avoid the thieves’ destruction, the terminal should be hidden as far as possible, please notice waterproof;
2. Avoid putting it together with emission source, such as burglar alarm and other vehicle communication terminal;
3. Can use ribbon to fix, or use wide sponge double-faced adhesive to stick.
4. Motorcycle connection mode: open the battery box and connect 12V voltage. The red line is positive (DC +), joint battery anode, black line for negative level (GND), joint battery cathode.
Package Included:
1 x GPS TRACKER
1 x Power 4P line
4 x screws”

GF07
Features:
1. Small size and light weight, easy for carry.
2. Black shell, easy to hide, perfect for tracking vehicles, teens, spouses, elderly persons or assets. With two powerful magnets inside, easy to attach to vehicle firmly, no extra installation need.

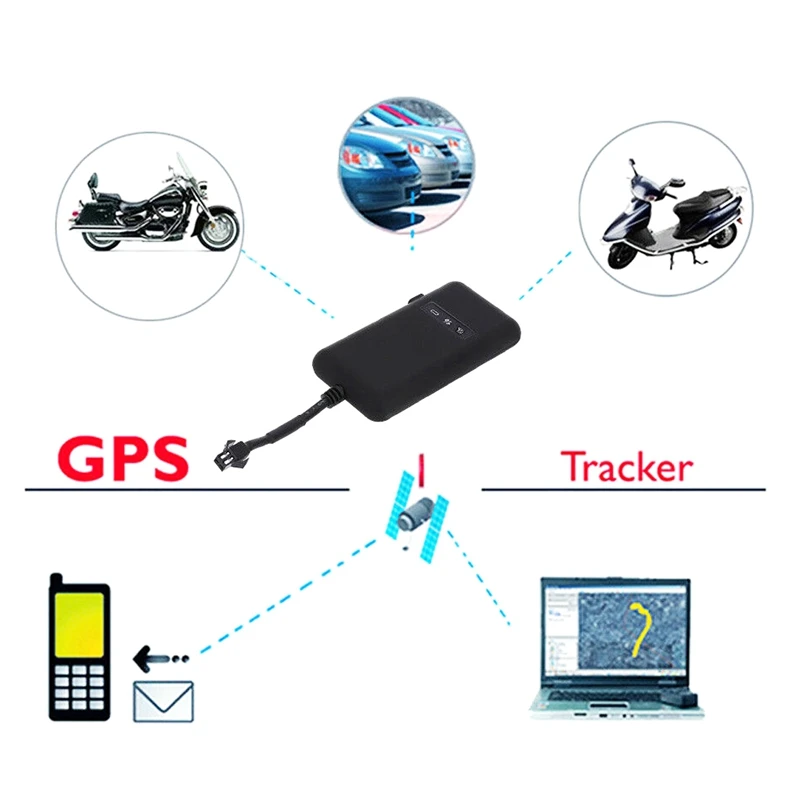

3. All you need is a working SIM card (NOT included!) to insert into the device, then you can track and map (with Google Maps) in real-time over the Internet.
4. Dial SIM card number, then you can hear voice around this tracker, with no light and no noise, you can monitoring and spy what’s going on around the tracker silently and secretly.

Function Instructions:
Record: Send number 555 to alarm phone, begin to record.
Sound monitoring: Send number 666 to alarm phone
GPS track: Send number 777 to alarm phone, the phone receive geographic position and map link.
Positioning trajectory: Send number 102 to alarm phone.
Delete Memory Card Content: Send Number 445 to alarm phone.
Reboot the phone: Send number 999 to alarm phone, start success after 1 minute.
Reset the phone: Send number 444 to alarm phone.

Specifications:
Type: Magnetic GPS Locator
Material: Plastic
Size(approx):35*20*14mm
Quantity: 1pc
Color: Black
Talk Time: 150 -180 minutes
Standby Time: 12 days
Working Time: 4 – 6 days
Expansion Card: Mini TF card
Network: GSM/GPRS
GSM Band: 850/900/1800/1900Mhz
GMS Locating Time: 25 Seconds
Power Input: AC 110-220V 50/60Hz
Power Output: DC5V 300 – 500mA
Battery Capacity: 3.7V 400mAh Li-ion Battery
Working Voltage: 3.4 – 4.2V DC
Storage Temp.: -40 to 85 celsius
Operation Temp.: -20 to 55 celsius
Humidity: 5%-95% non-condensing
Warning: Must insert SIM card before charging.

Package Included:
1*Mini Magnetic GPS Tracker
1*USB Charging Cable
1*English User Manual
